I inletted and bedded this with two pillars. I mentioned to the owner that I had a Kenyon trigger that would fit, so we installed that and a moveable trigger shoe.. big improvement over the old Anschutz trigger.

I have a couple of Kenyon triggers for Anschutz left. One of them has two sears, so it’ll work on early and late Anschutz.

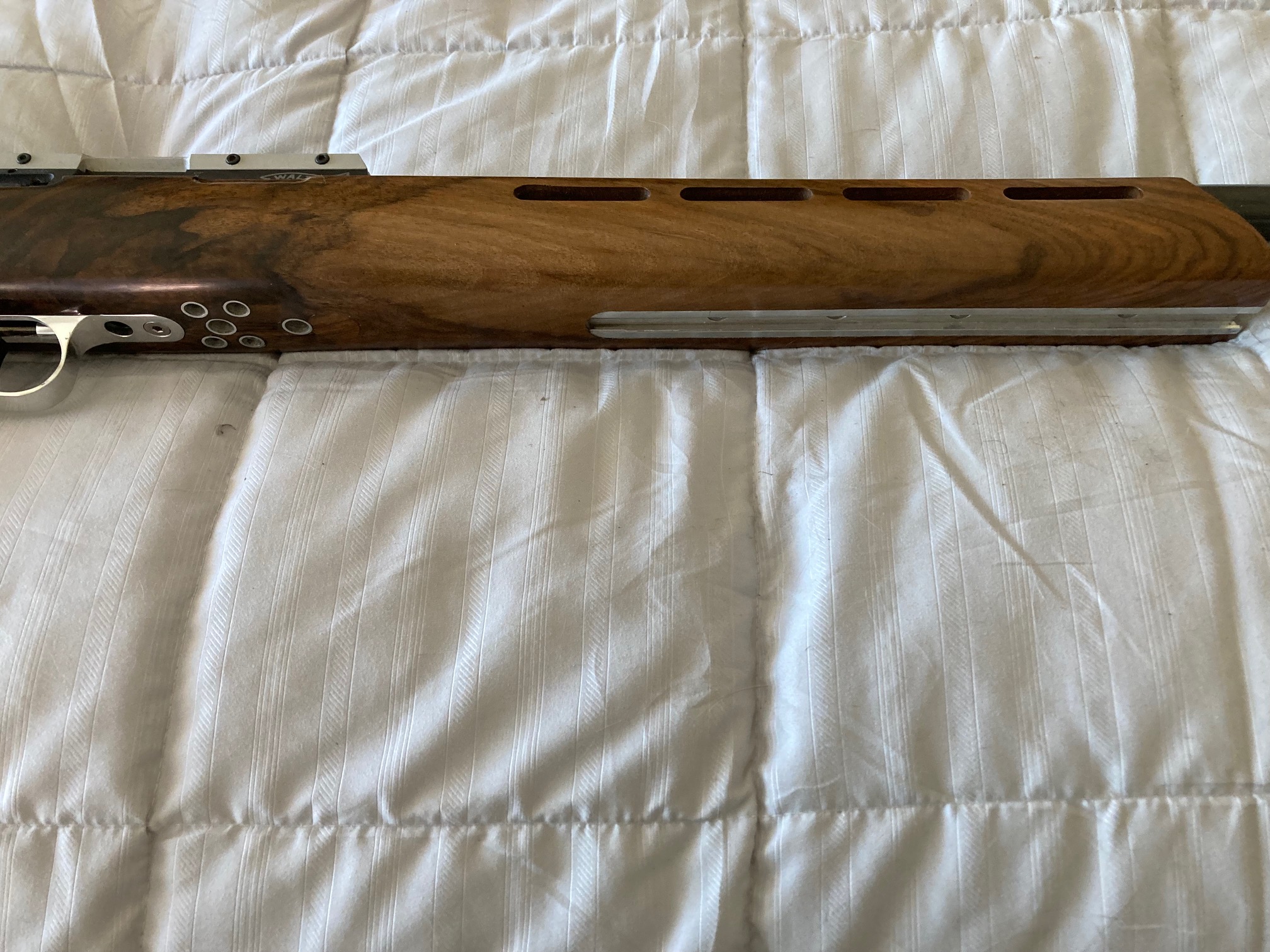

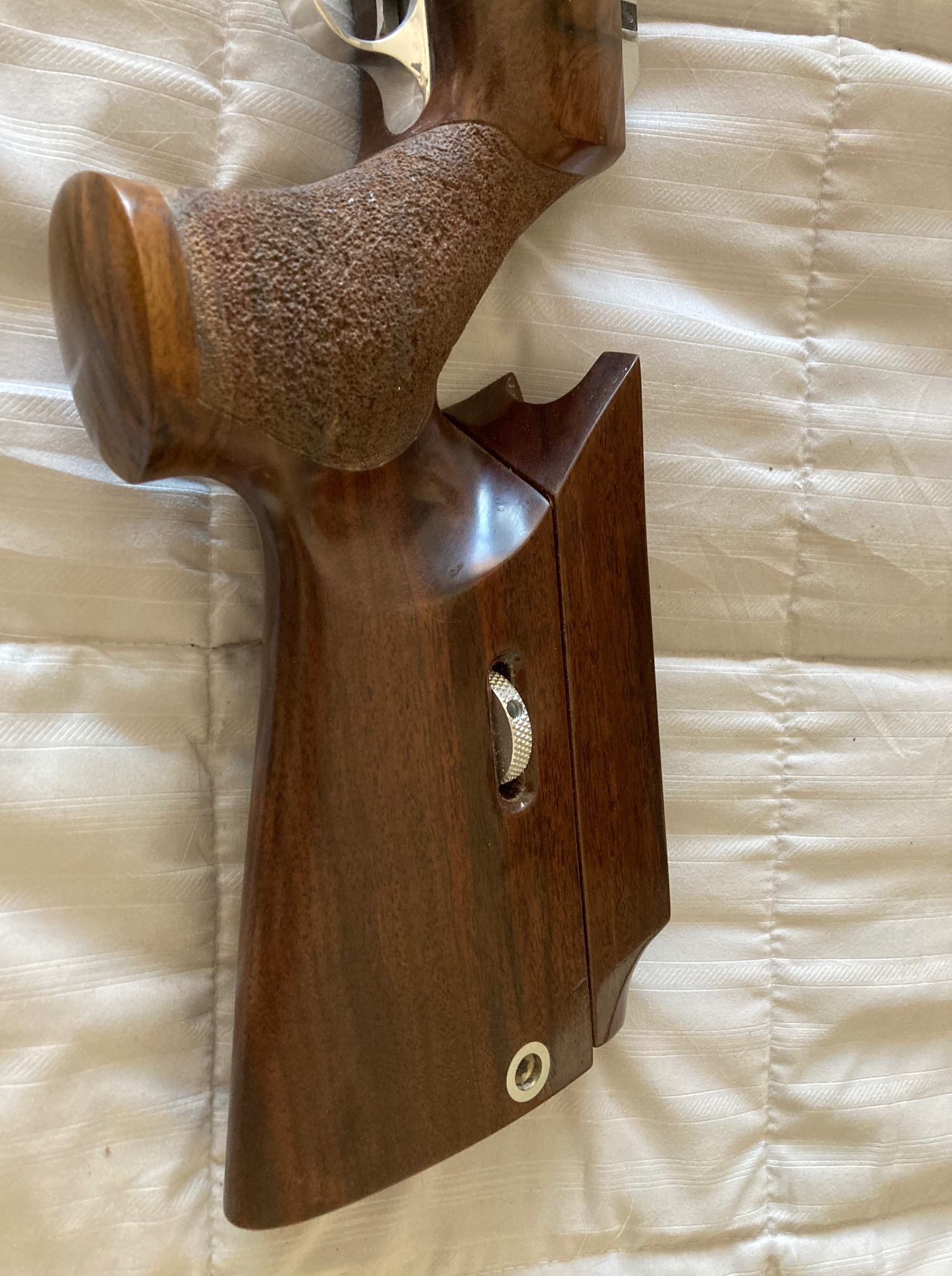

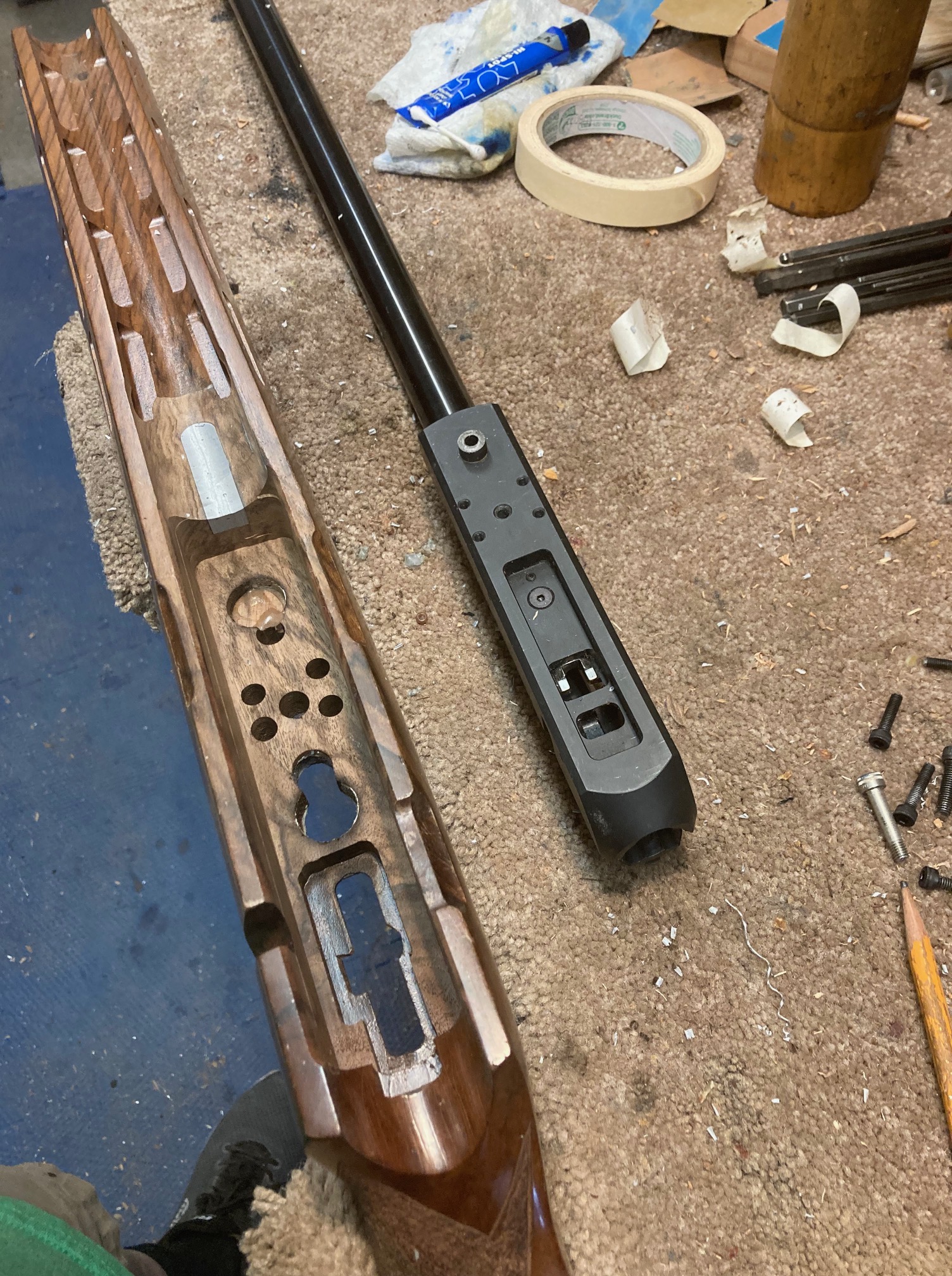

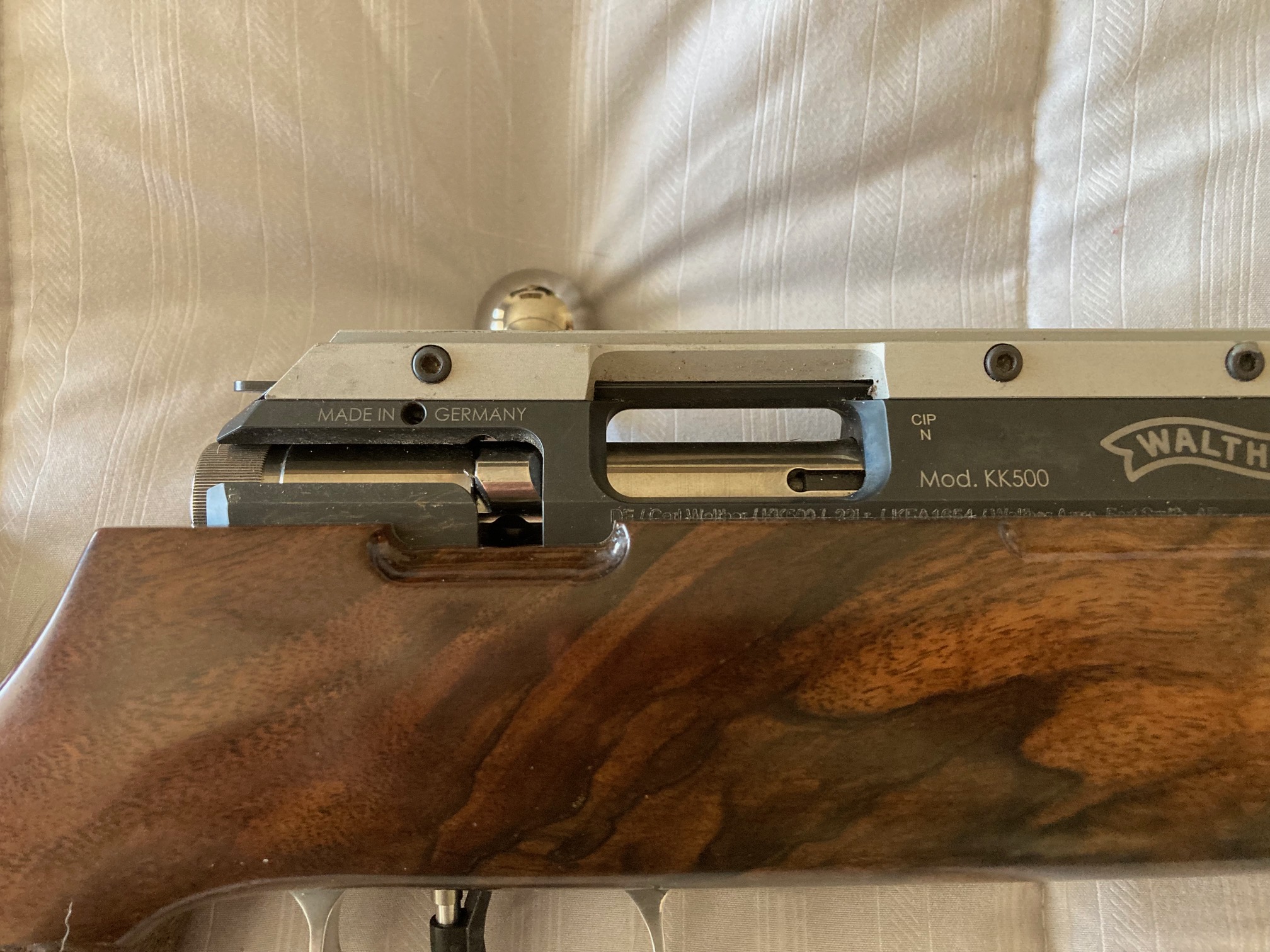

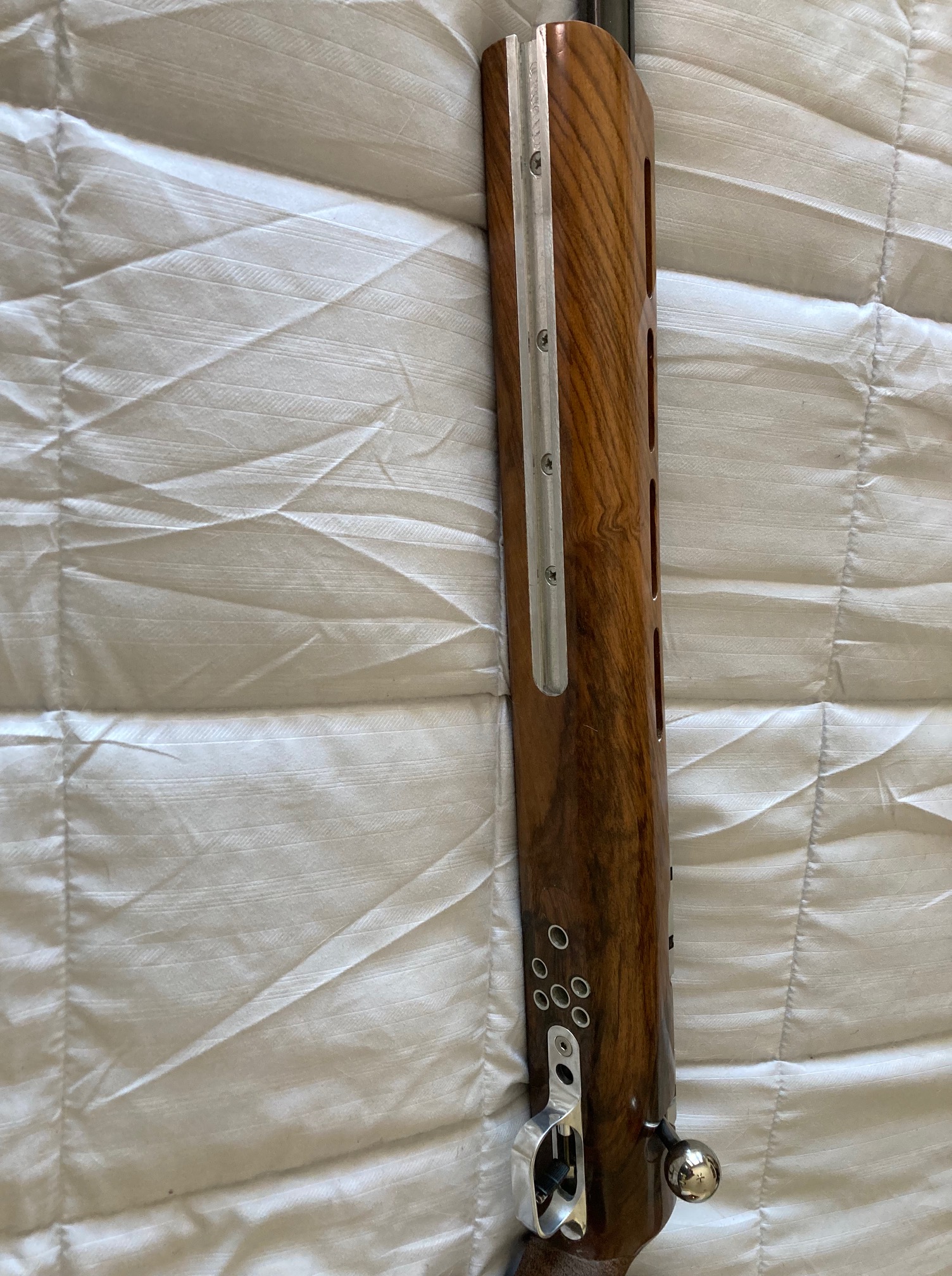

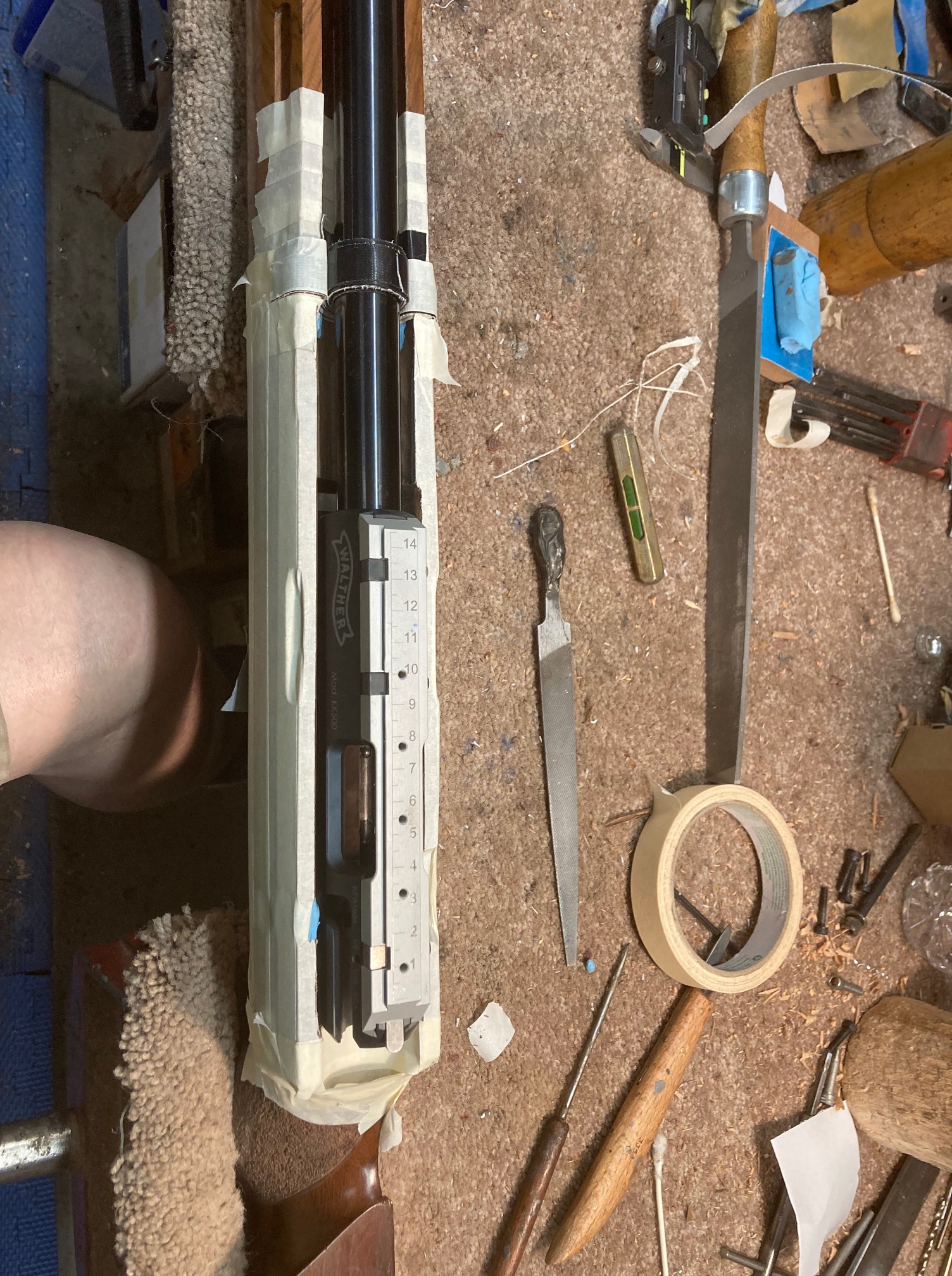

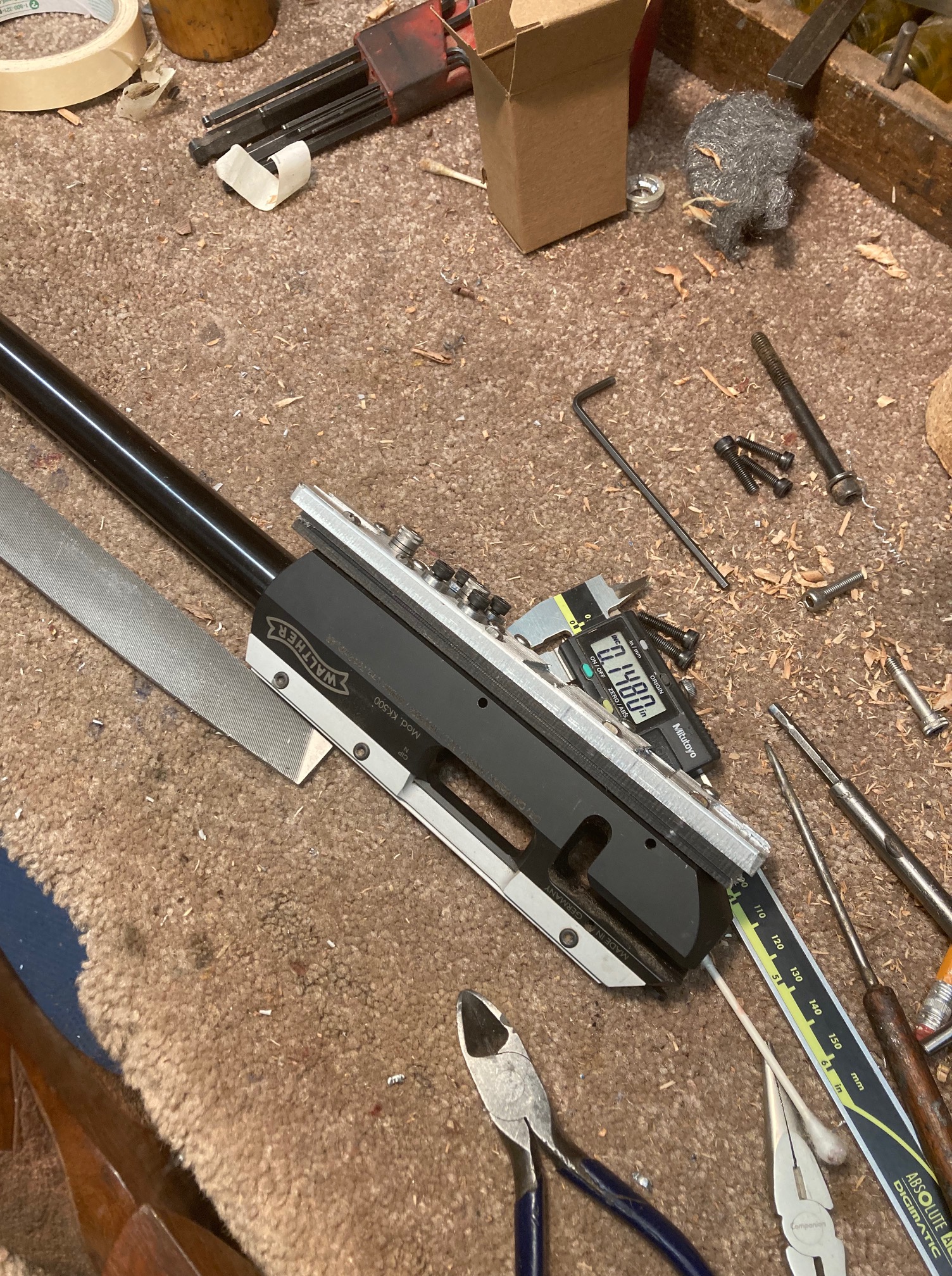

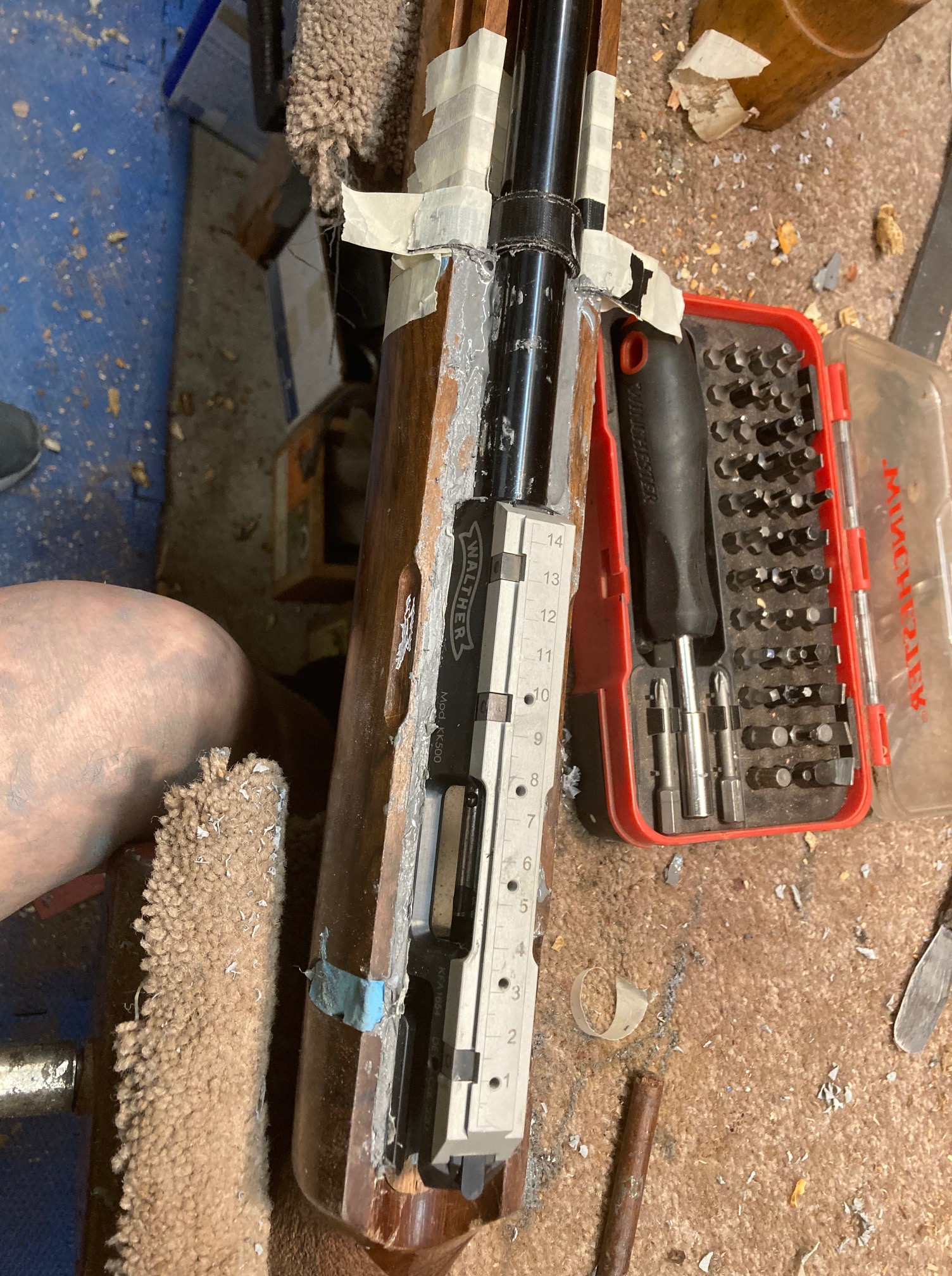

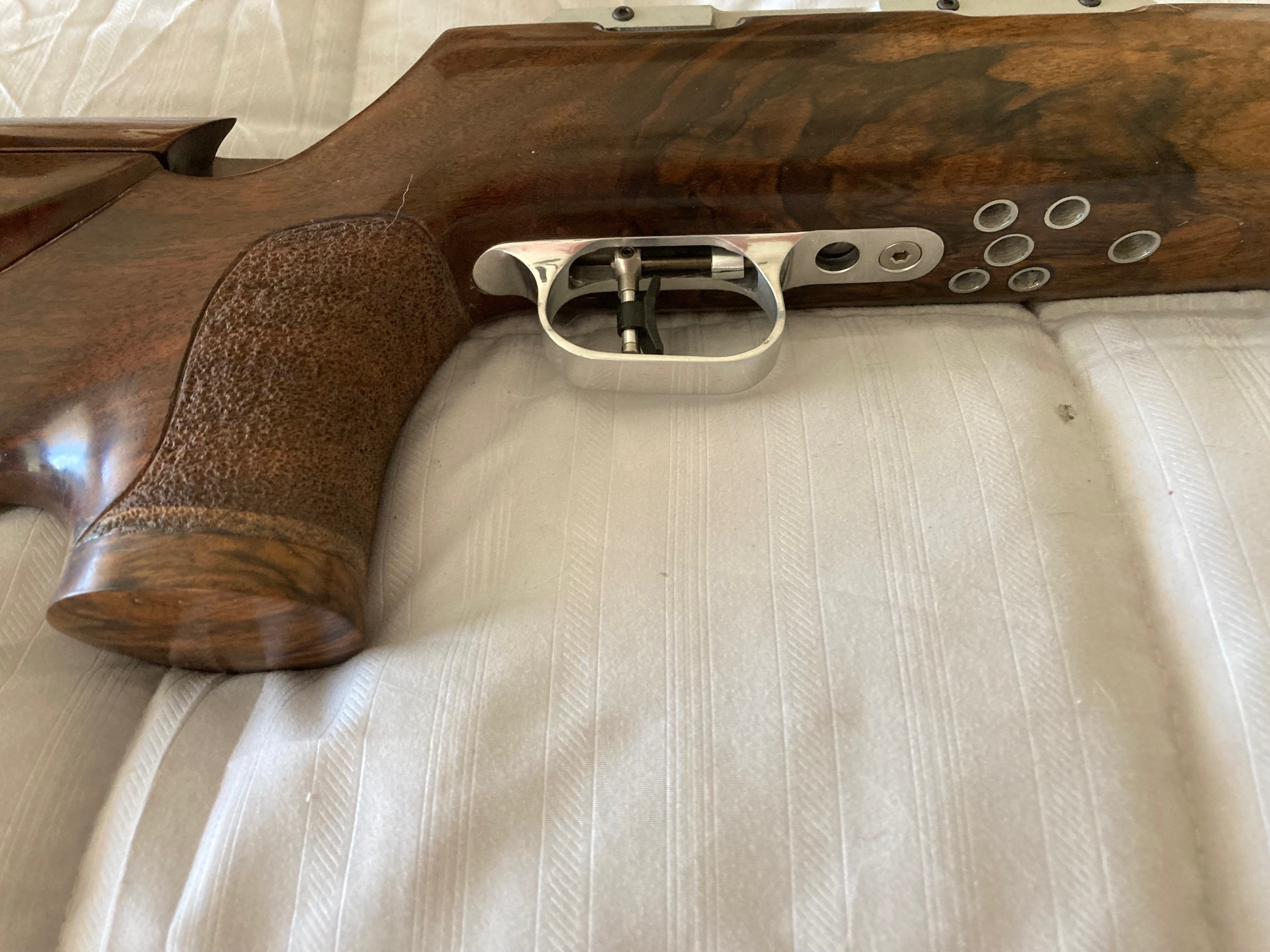

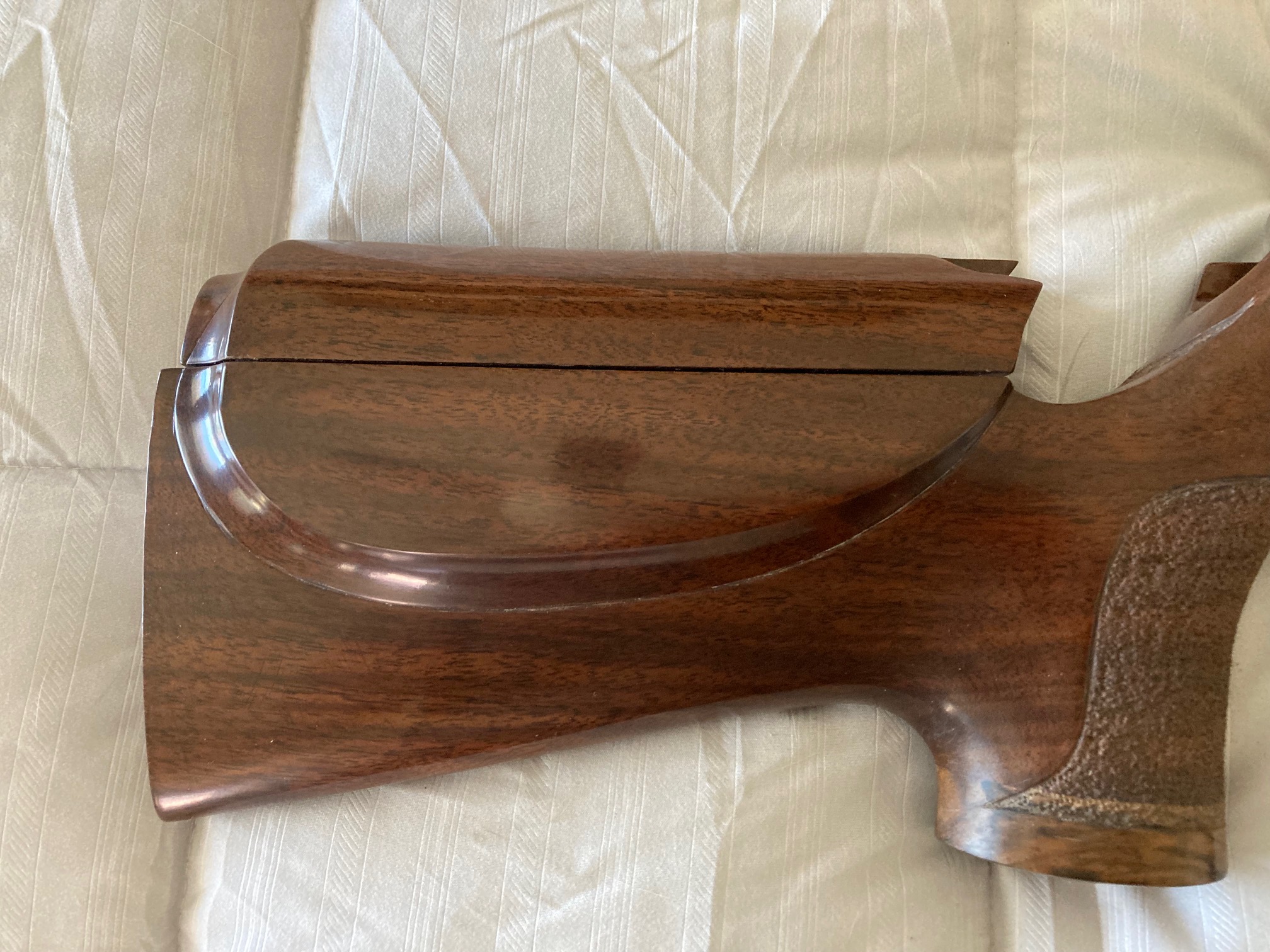

I built this stock around 2010 for the a left handed Swindlehurst action. The previous owner wanted this action back. The new owner wanted the stock, so I put in a Walter KK500 Action.

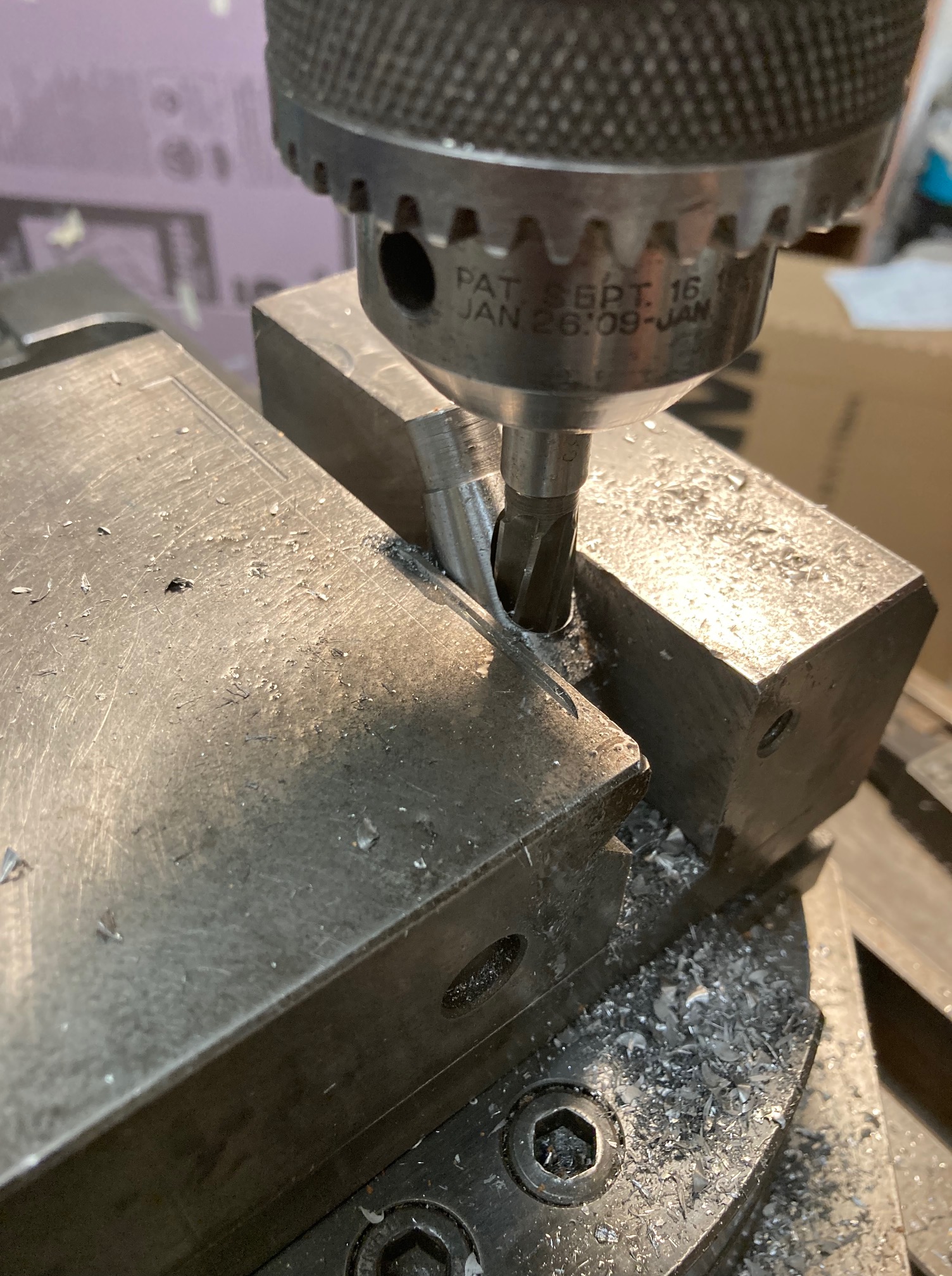

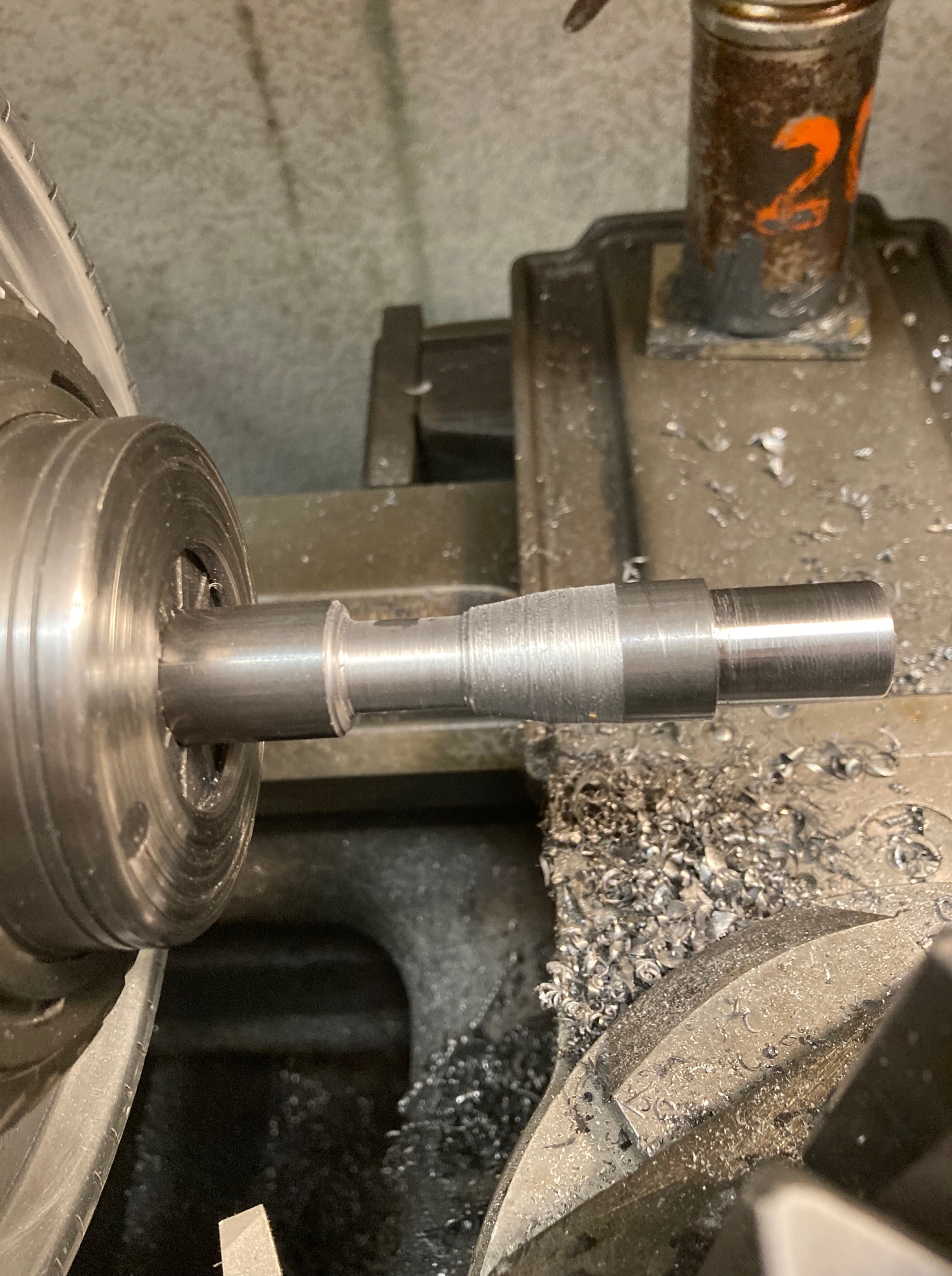

Made a trigger extension, as well.

These grips fit:

Gary Eliseo, Tube Guns and Ar-15s.

Took a break for my normal routine.

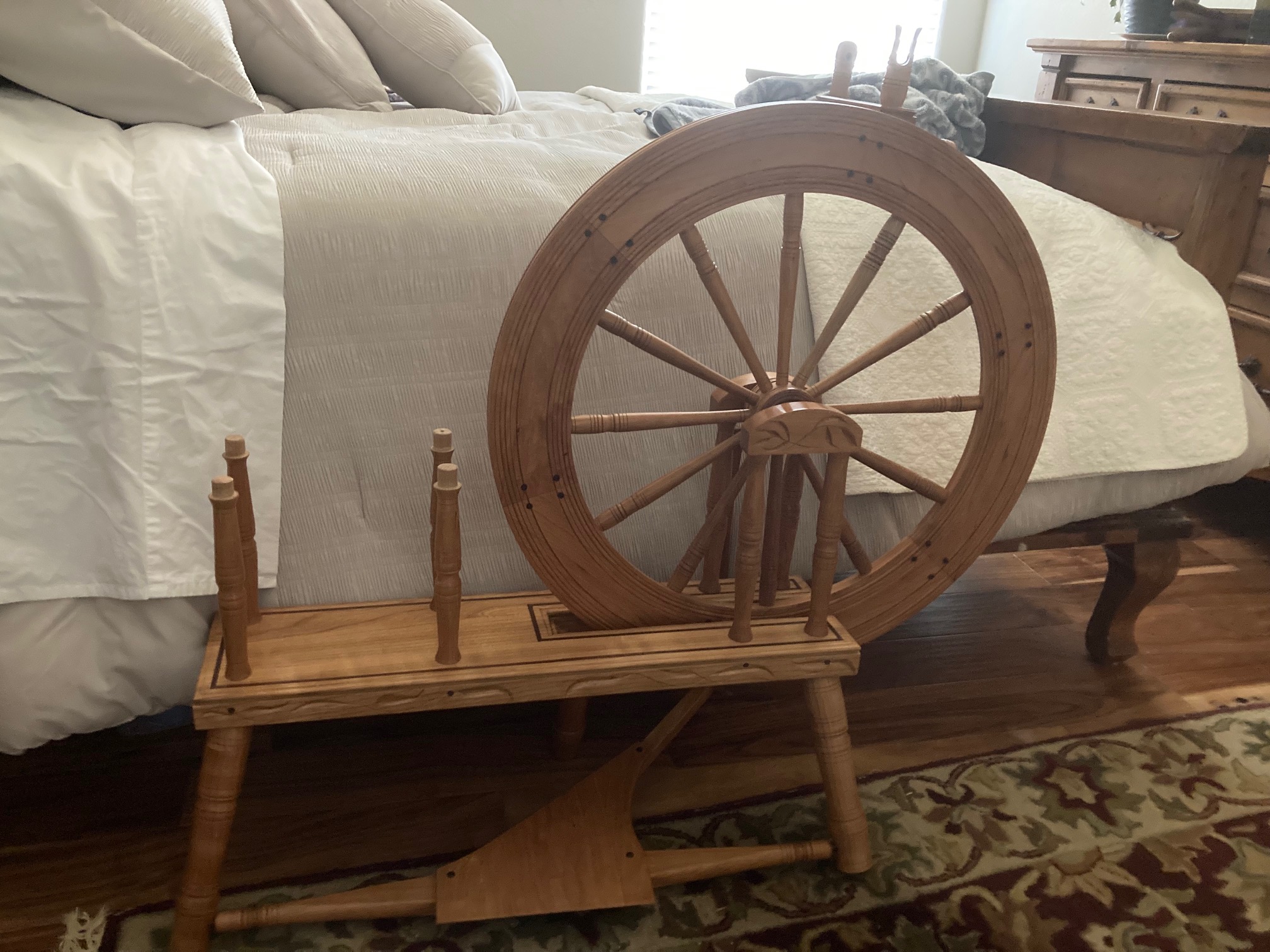

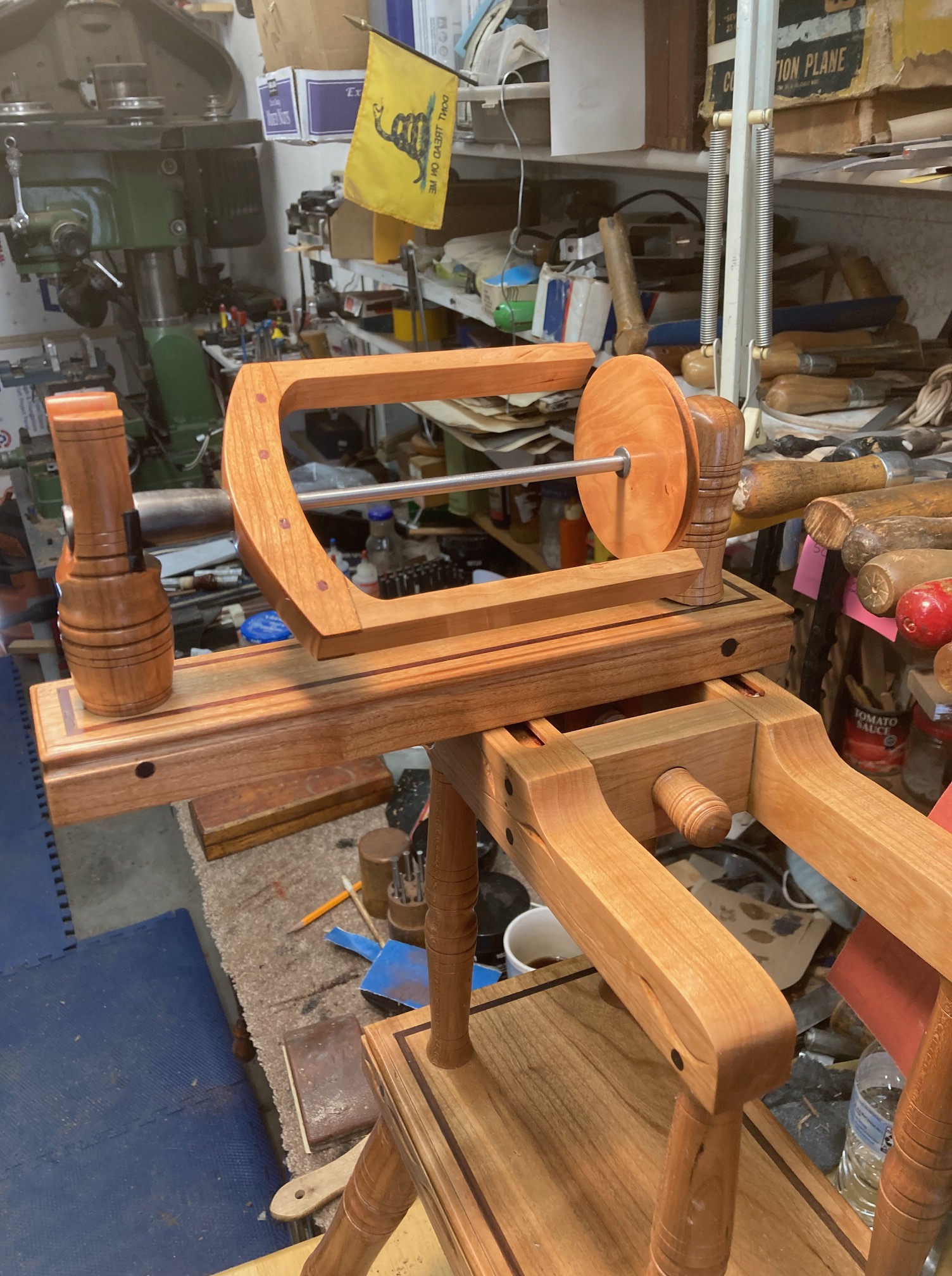

Looks like this one will be ready for The New Mexico State Fair.

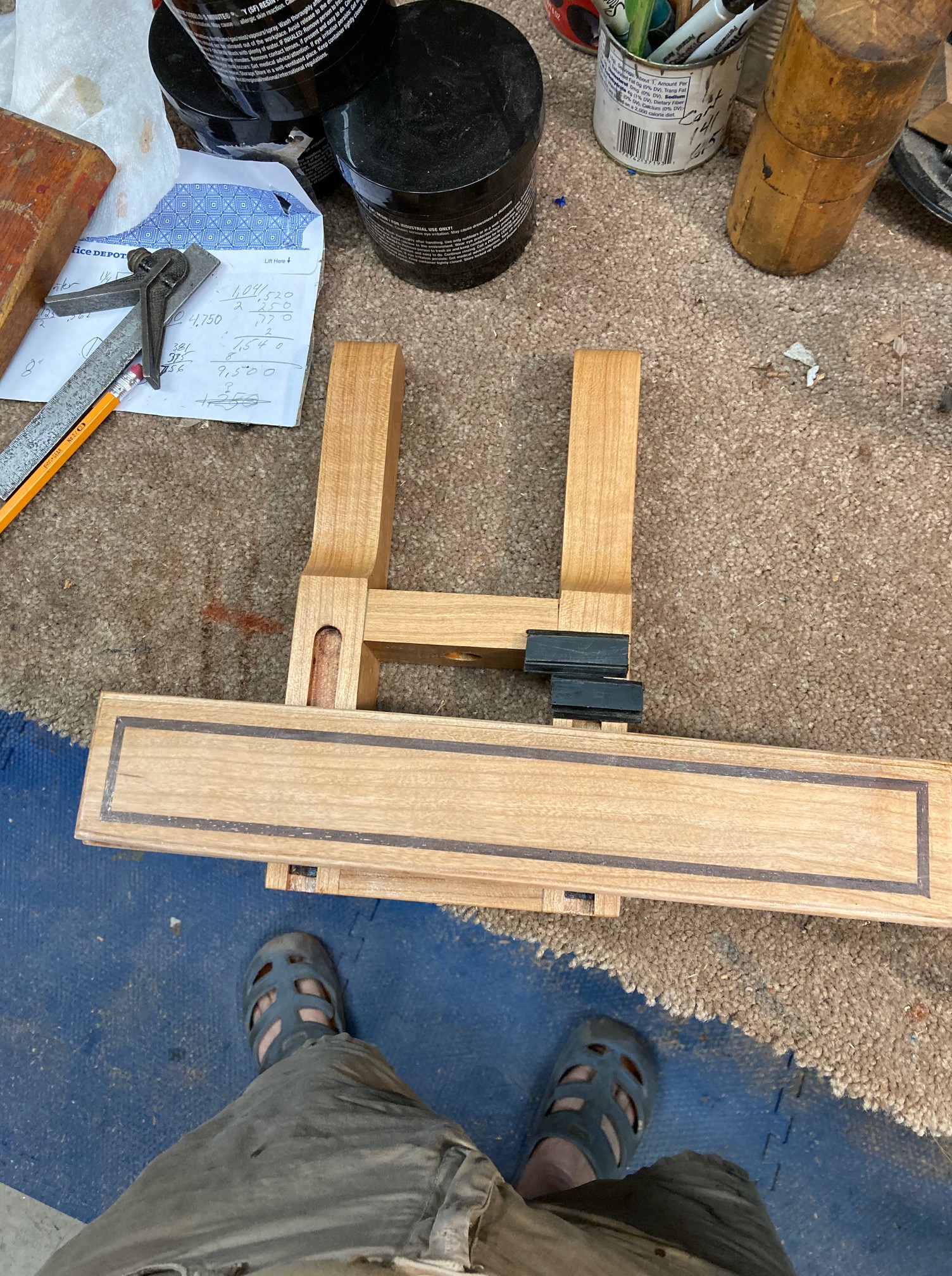

Main wood is Cherry and all the inlay is Rosewood.

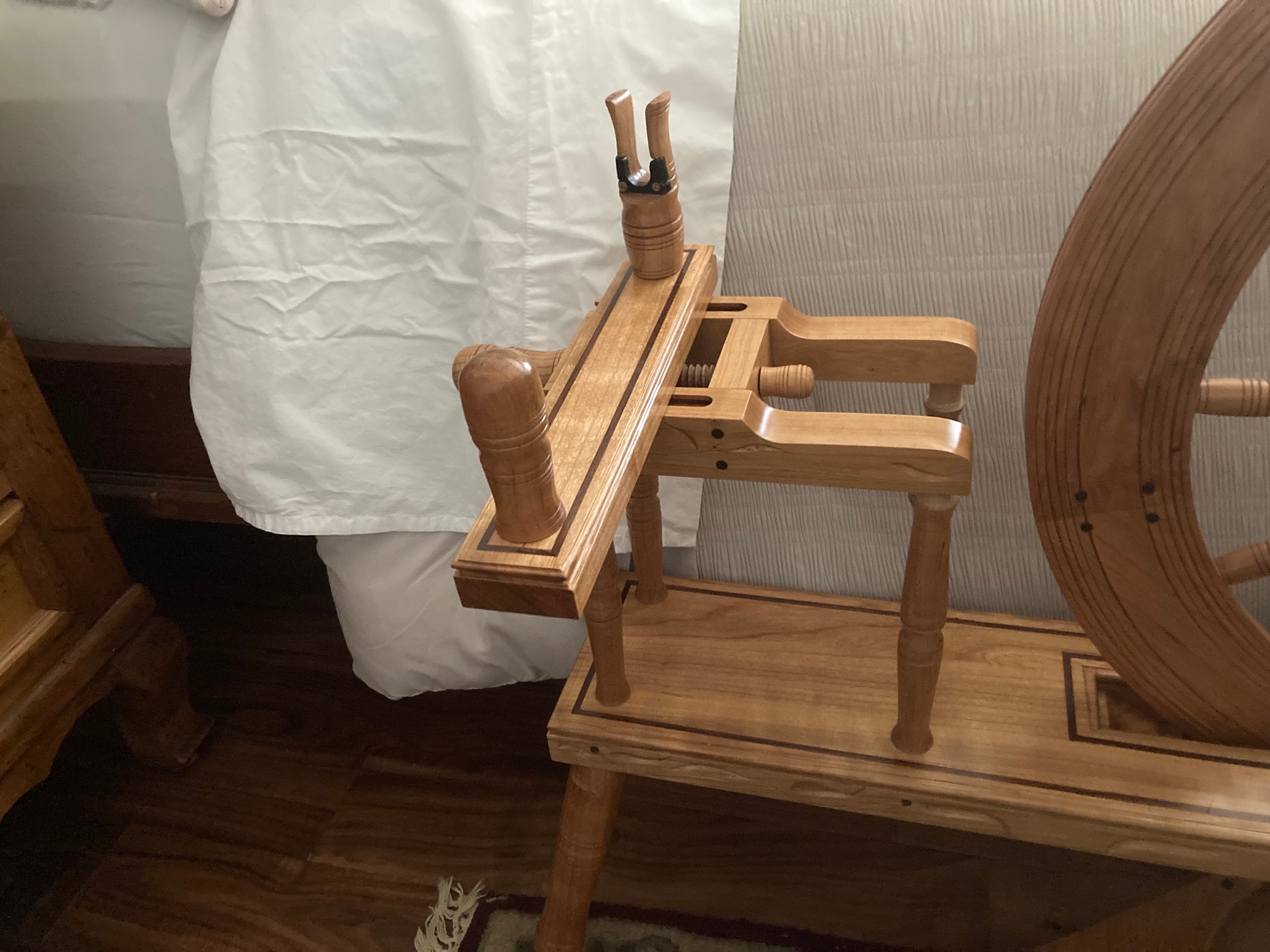

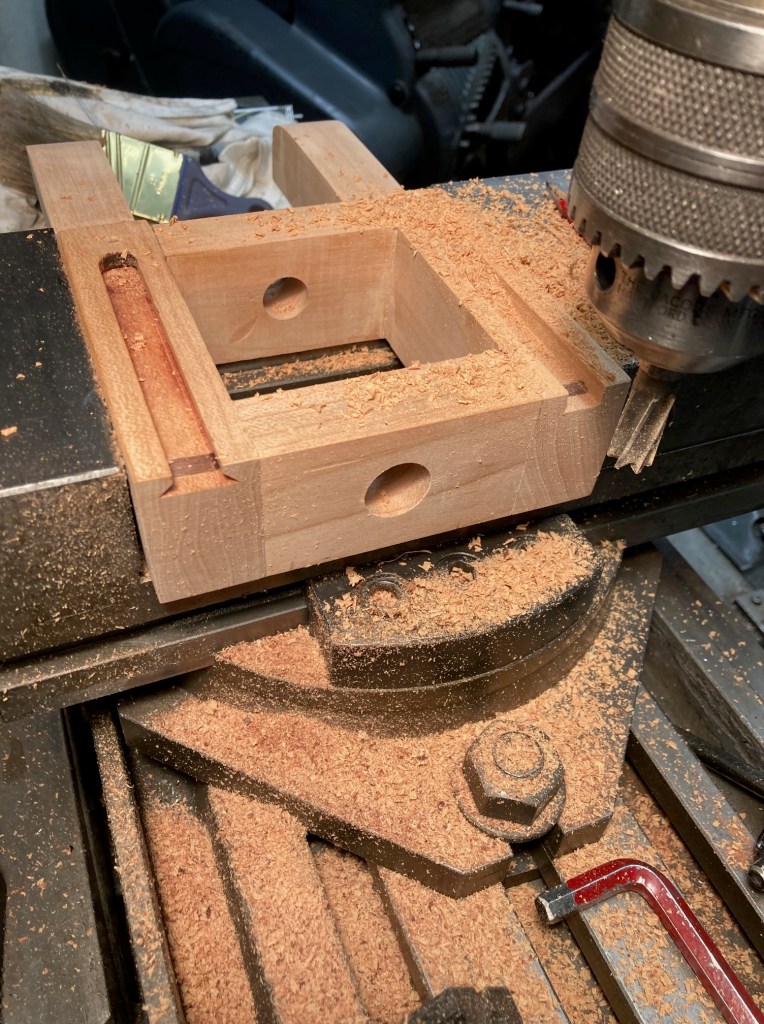

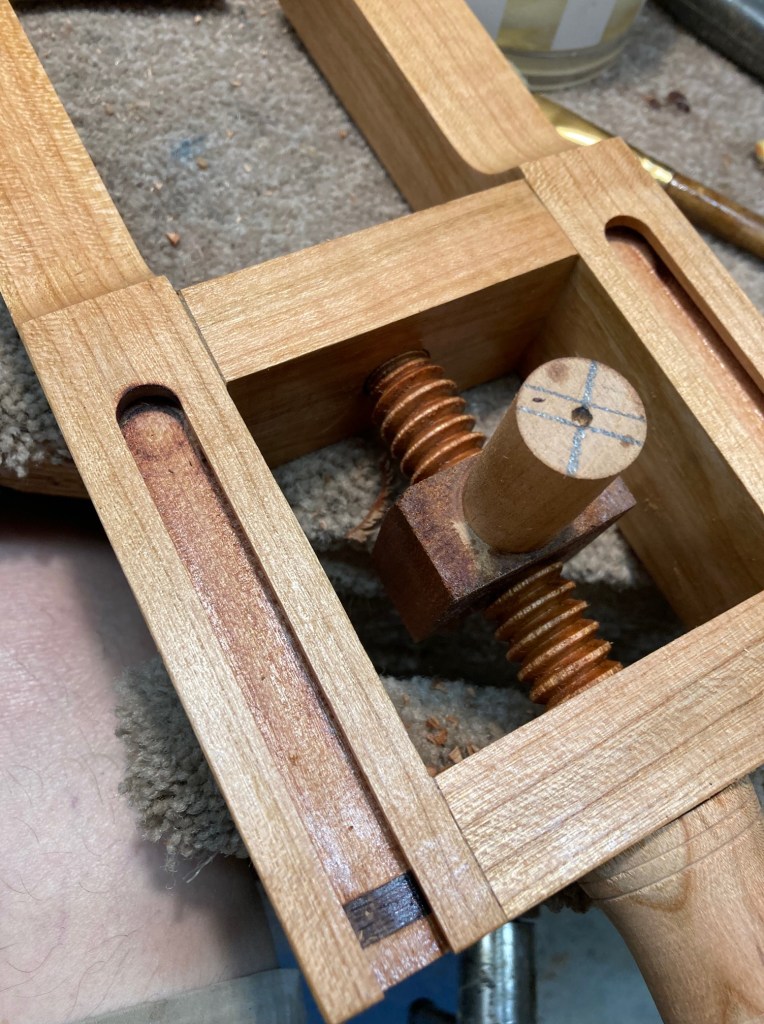

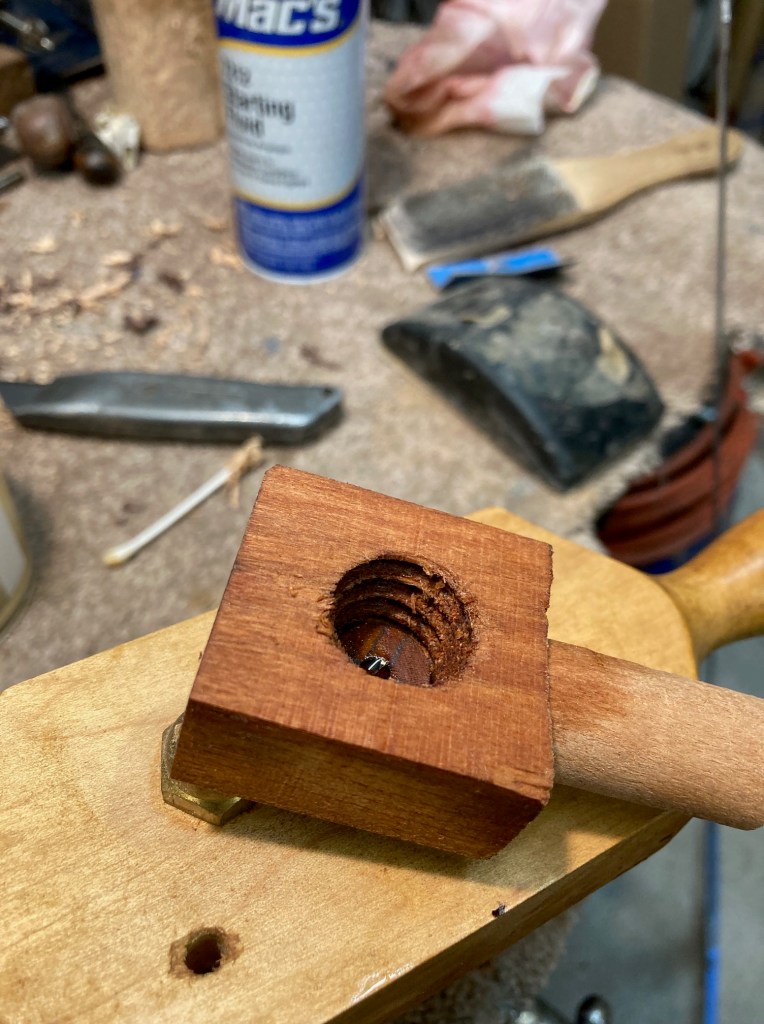

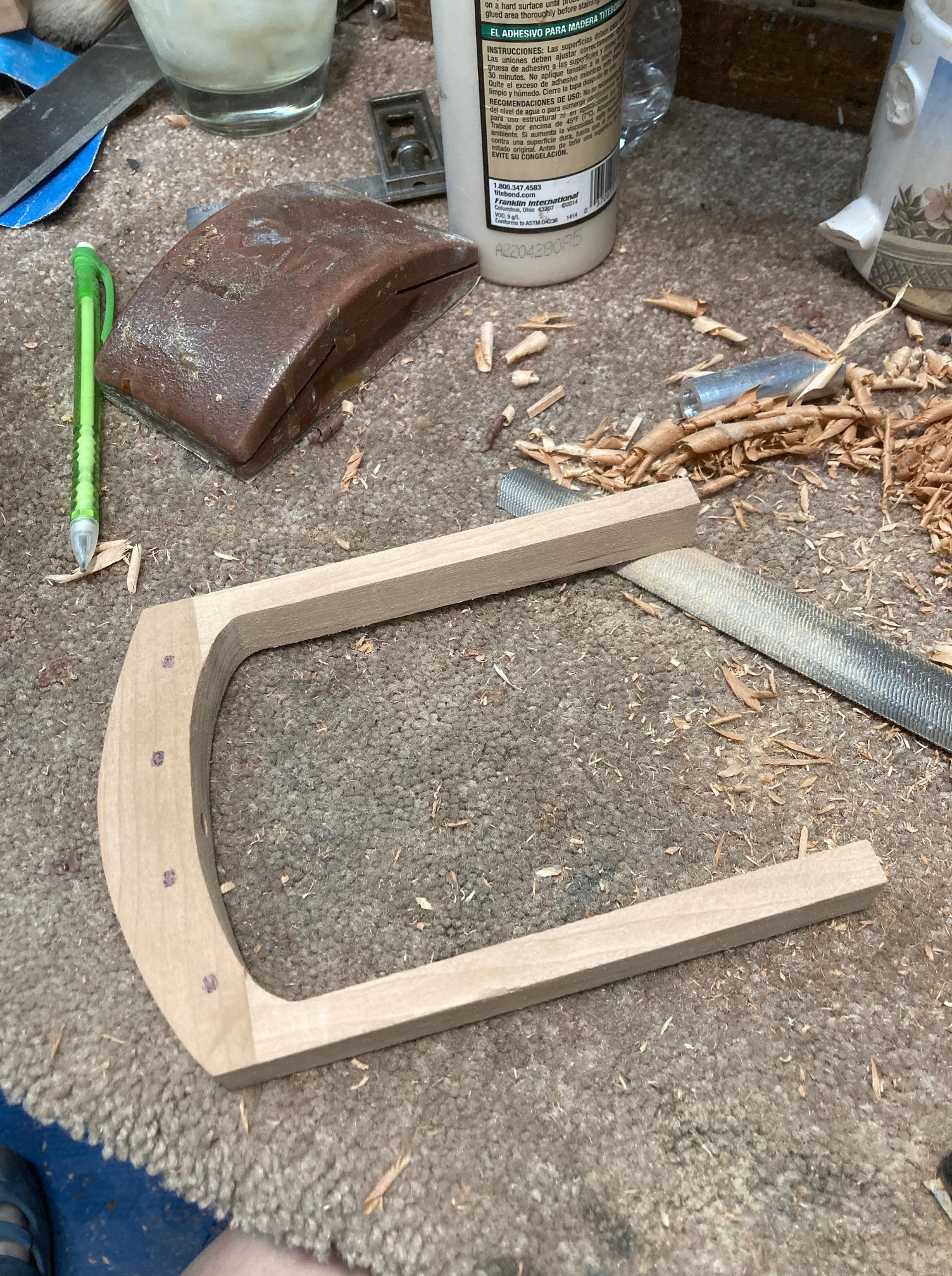

Still have 5 bobbins to and the 4 axles for the Lazy Kate.

I’ll return to the normal programming next post.

This rifle was missing the stock and the trigger. Finally found a trigger and a stock that worked. Put it all back together.

When people had to turn in their firearms in England, Mac Tilton purchased a number of containers. This rifle was found. The person that purchased it thought is was rather unusual. They found out it was owned by C.J. Hyde. It was discovered that he had won a number of World Championships with this rifle. I’ve attached an article. It has had three Eric Johnson barrels on it. I believe Winchester made this receiver. The shape of the numbers are very similar to the ones that Winchester uses. The way it’s stamp looks to be an experimental Winchester. This rifle is a real treasure and it’s a shame that it was lost from the English Shooting Community in this way.

The trigger that I found, I believe to be a Smith Trigger. I noticed that the wear patterns on the pervious trigger don’t match match. Possibly, the original trigger was a Wright Allen. I tried to bring this rifle back with the parts that I had to match the rifle’s time period. Every once in a while you get to work on something that intrigues you this much. It was a real thrill to work on an item of such historical importance. I’ve worked on a few modern World Championship rifles and to have worked on this one brings it all full circle.

If anyone can add anymore info to this, please let me know.

Finally made a pattern for a Benchrest Stock!

Used that for the Turkish Walnut Stock.

Fortner Action are a little different to work with. You have to put a magazine well in the magazines with fit into the bottom of the stock. The trigger guard has to be fitted at an angle.

The pistol grip cap is bloodwood.

I was sent this broken stock to repair. It’s an early stock of mine. I’m in the processes of putting it all back together. Here are some pictures before I finished and completed the work.

I glued it back together, inserted a new pin and put in the splines for a extra strength and added insurance.

This was shipped by a major shipper and broken during transport. It took a tremendous amount of force to make a break like this. I would not be inclined to use this shipper in the future. I’ve had other problem with this shipper, as well.

I’ve broken shovel handles like this by using it as a lever.

I’ve been catching up on a few smaller things in between the larger ones.

Retrofitting entails putting a rear bag slider at the appropriate angle and finding a piece of wood from my stash aka the scrap pile to put under the stock. The scrap pile has bits of English Walnut, Mango, Koa and Purple Heart… nothing goes to waste.

Here are two configurations of F-Class rifles, both shot in this year’s Western Wildcat Match.

This first rifle is Leo Cebula’s which is an Winchester 52E action. Leo was the original owner, he had the gun barreled by CP Hart. This was after Mike Walker left Hart Barrels. Later, Lenore Lepinski had if for a number of years. After Leo got the rifle back, I rebuilt the it and and added a custom Doan Trevor mango stock. I used the old Hart barrel and rechamberred it. This barrel could be approximately 50 years old.

Here is Jim Murphy’s rifle. It’s a Vudoo Action with a fiberglass stock. I reclaimed the stock as it was bedded for 2000 Anschutz. Filled in the bedding and then pillar bedded the Vudoo. Also, I cleaned up the finish and resprayed it.

In reply to the height of the stock causing recoil, it seems to be indeterminate. Both rifles performed well. Leo and Jim both said there is no problem with recoil.

Here is the trophy for the Western Wildcat Match. When I was assembling it, I realized that the names read like the Who’s Who in the Smallbore World.

Trudie went to South Africa with a rifle that I barrelled and is coming home with Shiny New Medals.

Congrats, Trudie you are a rock star!

This is my own stock, I built for myself. It purple heart, maple and walnut.

 I added an extension to the bolt handle. The hole in the stock is to release the sear to get the bolt out. And offset scope blocks.Update from Last Spring: This is the 52 Winchester with Hart Barrel and Lilja tight chamber that I put together a few months ago. Finally had some time to shoot it in the usual Albuquerque winds. This was with non-selected ammo and me being a shaky old guy. I will shoot this at the Wildcat. I still will take my trusty old 37 Remington, though.

Here are the 3 post from the beginning of this project:

John Friguglietti sent over some photos. One of the photos is the 2nd place team. John was top Palma Rifle and 2nd place overall in the individuals. I’ve done a few stocks John and he says this is his favorite. Congrats!

Here’s Luke with Sean Simmons from Nightforce. I wonder if they are gonna start the second generation of ZZ Top.

Here’s Stephen Bunde:

and John Friguglietti:

and another one of Luke Ramsay with the trophy:

I participated at the Southwest Nationals. I survived.

I did though get to visit with some old friends. It’s been many years since I put these guys up on their pedestals.

Congrats to all that had their name added to them.

Congrats to Luke Ramsey, Steffen Bunde, John Friguglietti and anyone else out here shooting one of my rifles. Let me know who you are.

From Steffen:

I won the Southwest Nationals Palma individual sling match today. Another cold and windy day. At the 1000 yard line, the wind was 10-15mph. Made for some sporty shooting. This is a picture of me with Doan Trevor, a master artist at making gun stocks. Thanks to Berger bullets, Lapua brass and Vihtavuori powder for supporting the US Palma team.

Currently working on this. Will finish soon.

Finished this project! It was cool to do something a little different.

The stock is from an American Walnut tree that was living in Massachusetts.

Had some supervision on this one.

The rifle came to me with a broken stock. There’s a lot tedious work that goes into a project like this. Notice that amount of blacking on the towel. The stock is English Walnut and is Rosewood. This will be completely when I get the trigger guard.

Now that this is mostly completed, bobbins and flyer to be done in the future, I can go back to my daily woodworking.

I did some hand carving on the pillar block and base.

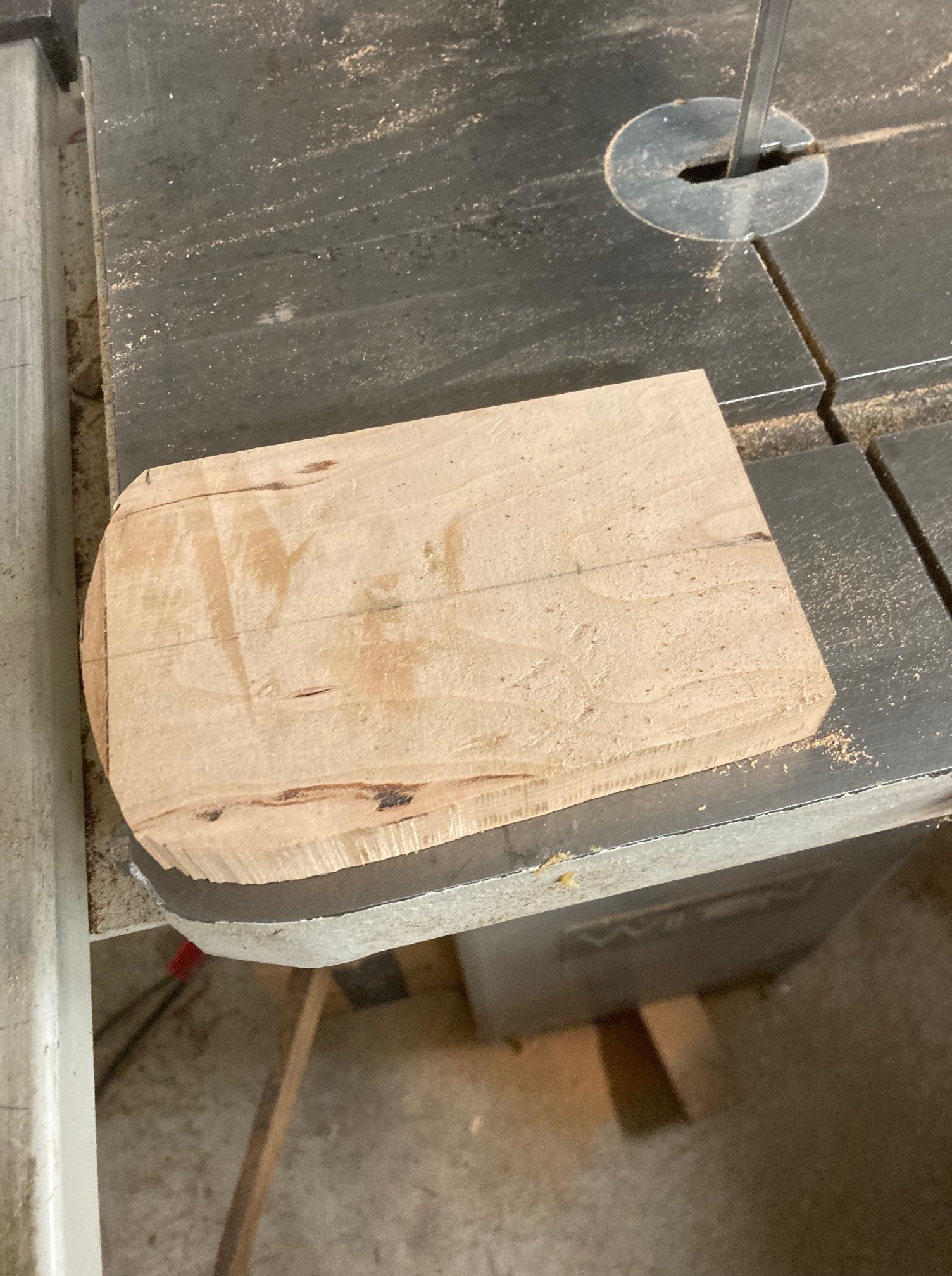

I have a really unique piece of wood that I’m currently whittling away on. Pictures soon.

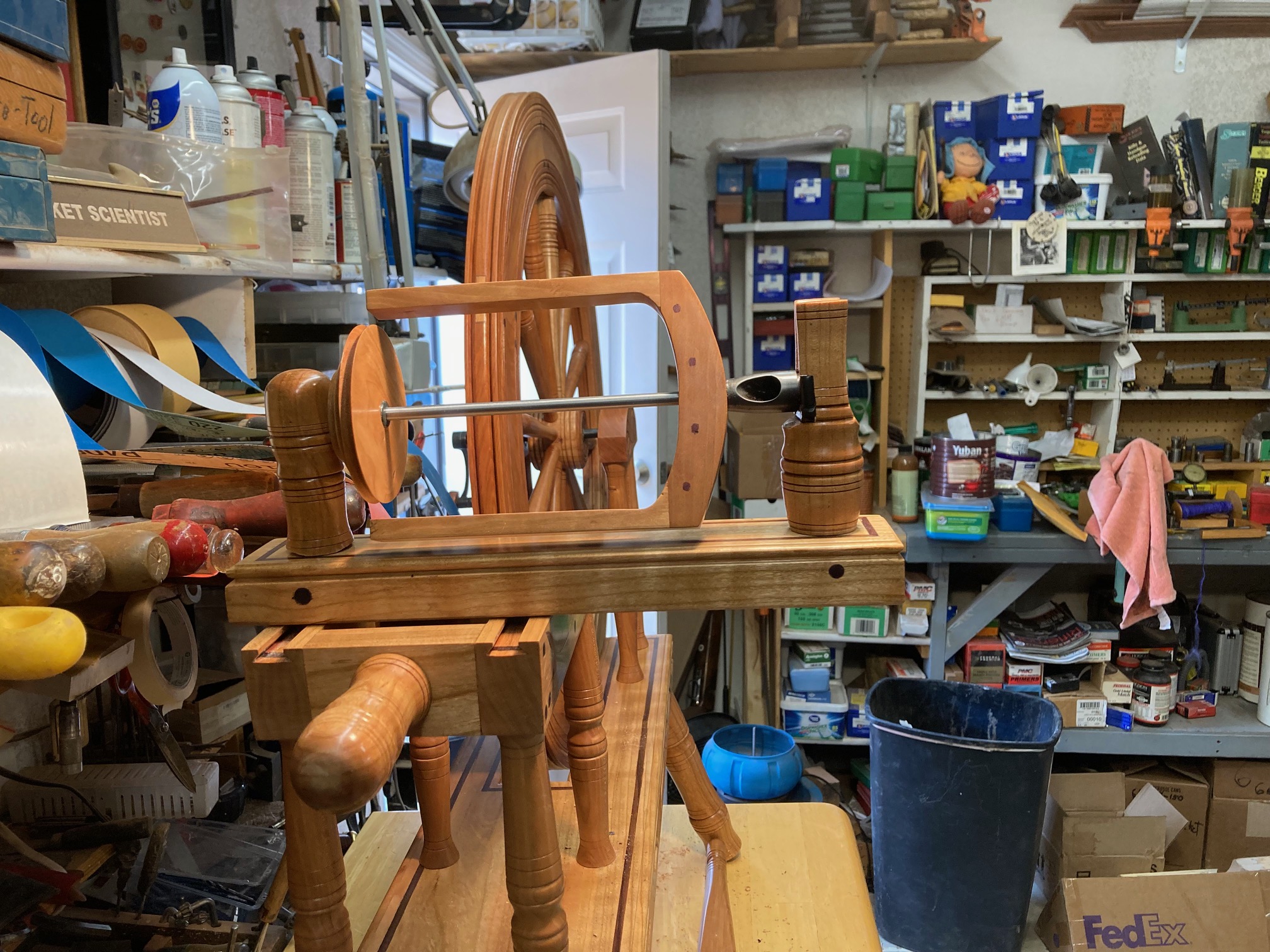

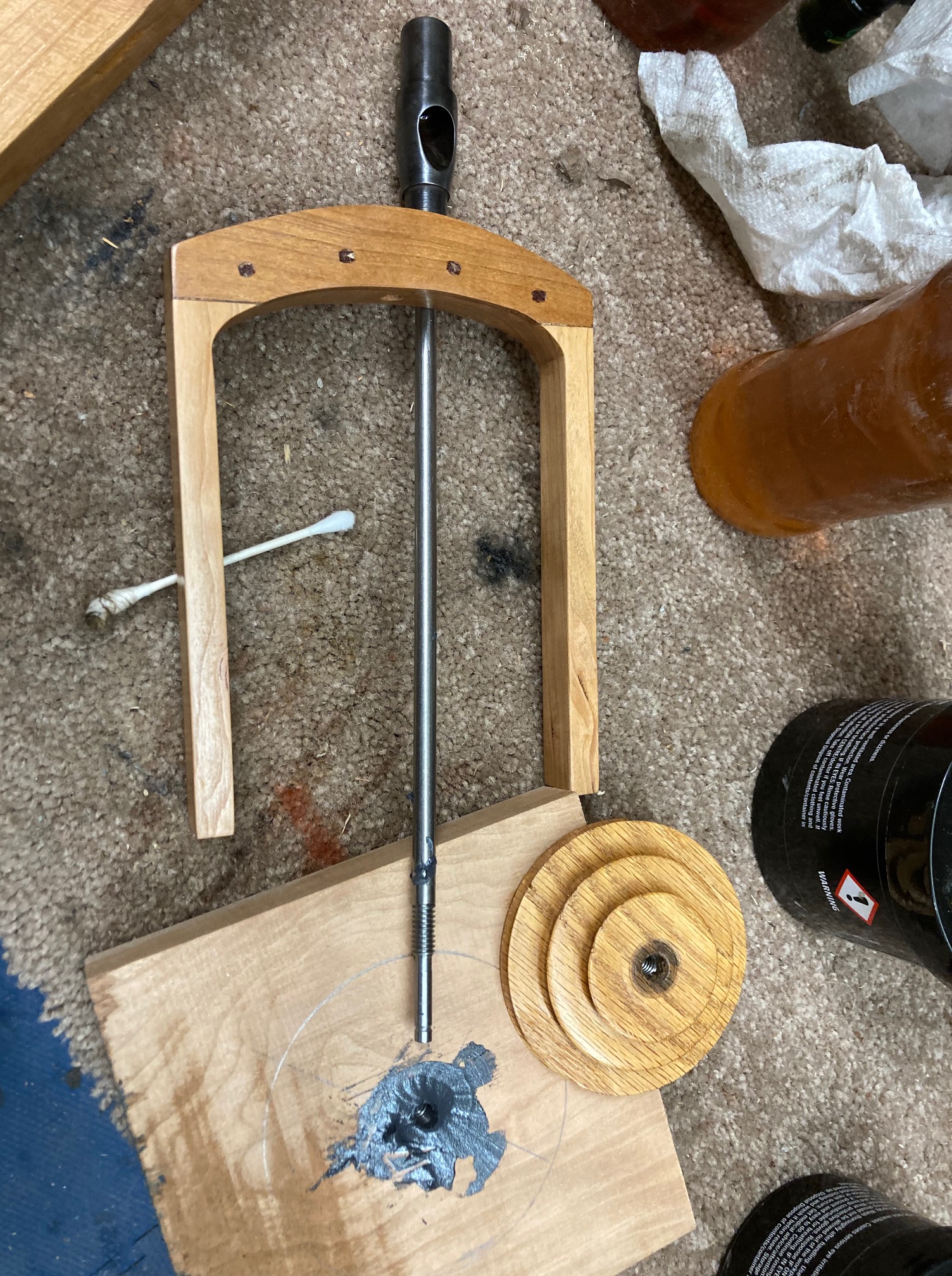

From the previous post, you can see I was assembling the hub with the spokes. Once that was finished the hub goes into the jig that you see on the table saw. Two steps of radius cut into the spokes and the the spokes fit into the lip of the rim. Also, I inletted the base of the spinning wheel with rosewood. Legs have been turned as well. Will be making bobbins and a flyer in the future. Stock work calls.

Things have slowed down just a bit. I’ve been keeping busy by making another spinning wheel. Idle hands and all.

So, far I’ve gotten the wheel, the spokes and the hub made. Will be assembling the wheel in the next couple days.

These are fancy flat pieces of wood from stocks I’ve done. It’s a mix of English Walnut, American Walnut, Koa, Mango, North American Walnut. The piece that I put water on was part of the USNRT Raffle Rifle.

This is stock is available now. There’s not much of a wait list at this moment. It’s good time to put in an order.

I’ve also started on a Spinning Wheel.

Three pillar bedding. Hart Rifle Barrel. Trued the action. Ebony Pistol Cap.
